240x320 Wi-Fi 6 2.8inch Lcd Touch Screen WT32c61-28S Esp32 Display WIFI dual mode BLE module with ESP32 C61 MCU RS485 LCD display

WT32C61-28S

1.1 Product Introduction
 WT32C61-28S is an ESP32-C61-based smart HMI display with an integrated 2.8-inch color screen. It is suitable for industrial control, smart home systems, IoT terminals, and embedded human-machine interface applications.

1.2 Product Features
1. Wi-Fi 6 connectivity: Based on the ESP32-C61, the board supports Wi-Fi 6 and Bluetooth LE 5.0, delivering higher network efficiency, lower latency, and better multi-device connectivity than conventional Wi-Fi 4 solutions.

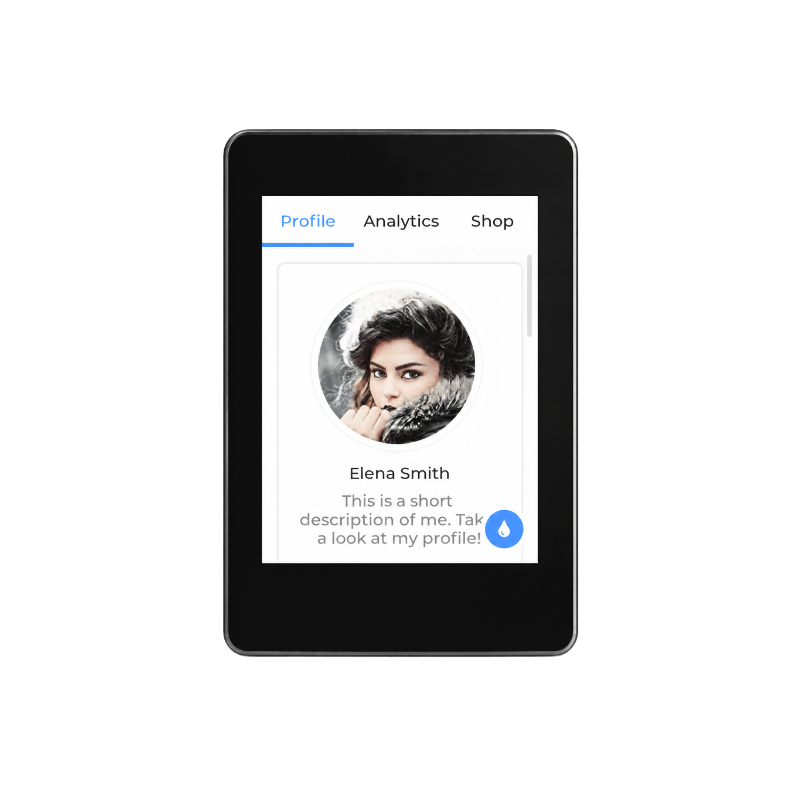

2. Integrated 2.8-inch display: Suitable for status display, parameter configuration, and graphical human-machine interaction.

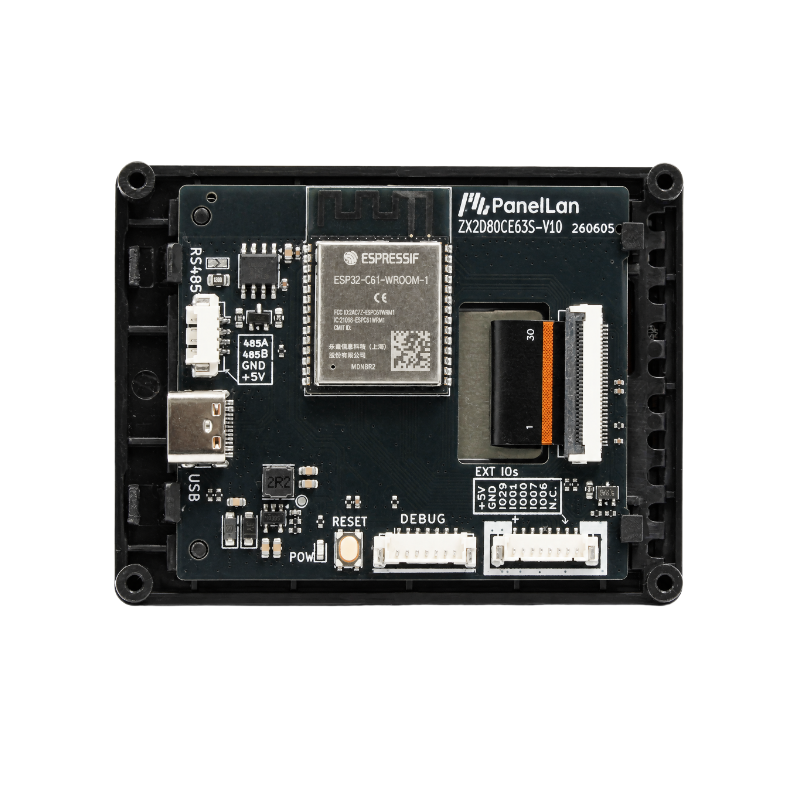

3. Rich communication interfaces: Provides an RS485 interface for connection to industrial
control equipment and system integration.

4. Convenient development and debugging: Supports USB firmware download, serial communication, and debugging.

5. Flexible expansion: Reserved expansion interfaces enable rapid development of connected display terminals and control devices
