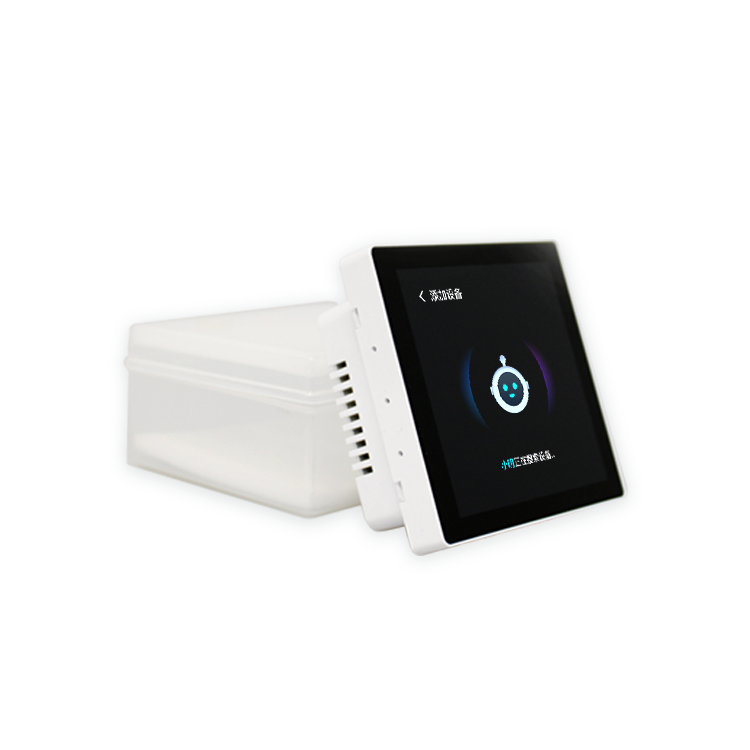

WT32S3-86S | 3.95 Inch IPS LCD Touch Display ESP32-S3 Module Smart Wall Switch Tablet Square Panel Smart Screen Display with Pragrammer

WT32S3-86S is a serial port LCD development board developed by Wireless-tag based on ESP32-S3 and the efficient 8ms embedded application development platform (8ms.xyz), which can be used for rapid prototyping of smart switch type 86 thermostat.

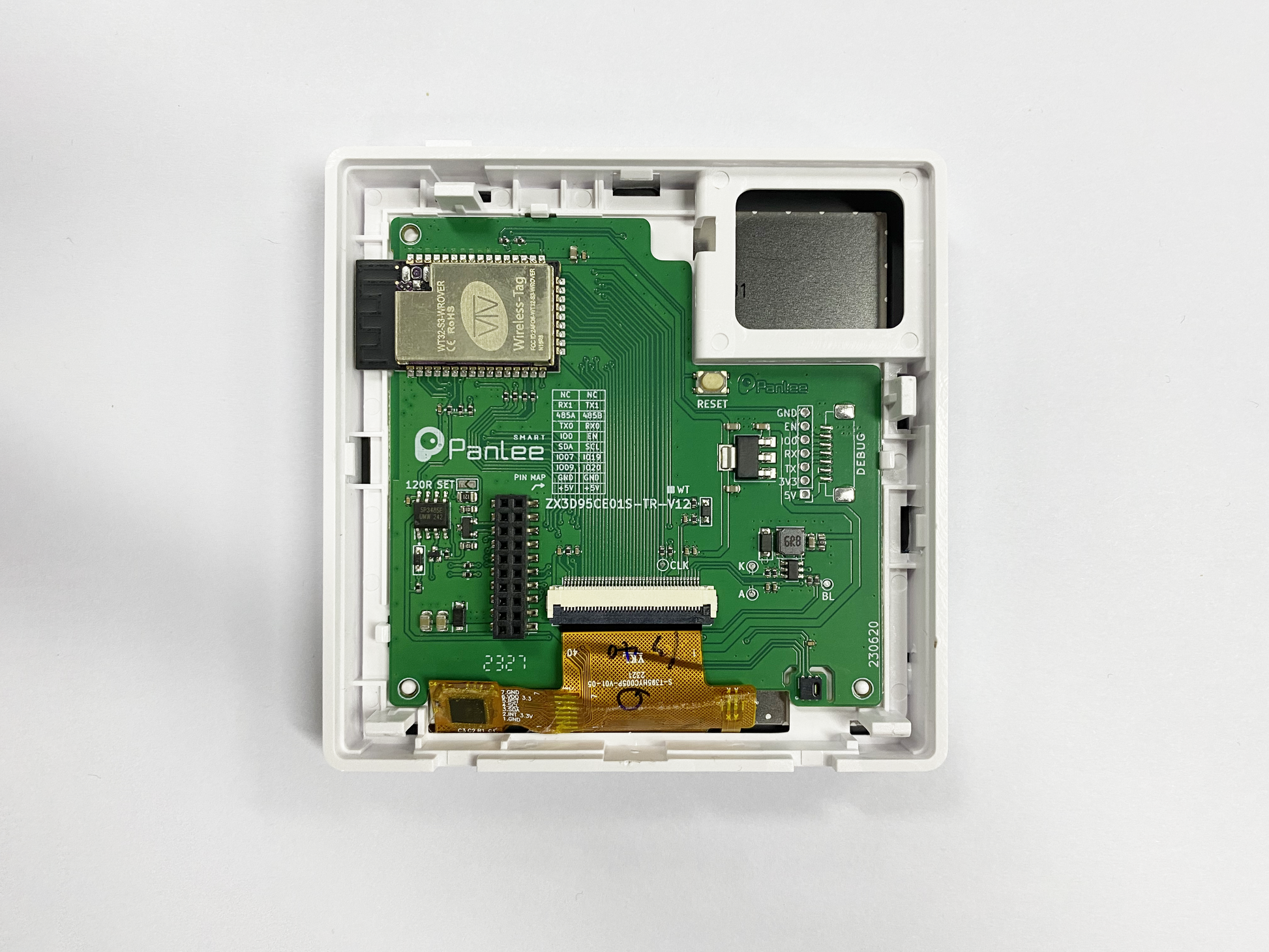

The development board integrates ESP32-S3 module and 480 * 480 LCD touch screen with RGB interface. It supports WiFi and Bluetooth, which helps to realize device network, remote control, data display, etc. It provides rich built-in resources such as USB interface, RS485, GPIOs, etc.

Part List: 1 x ESP32-S3 Development board - WT32S3-86 with 480*480 multi-touch screen; 1 x USB Type-C cable; 1 x Pragrammer

WiFi module: WT32-S3-WROVER-N16R8

Storage: 16MB Flash / 8 line 8MB PSRAM

Screen Type: IPS

Display Size: 3.95 inch

Drive IC model: GC9503V

Resolution: 480(H) * 3(RGB) * 480(V)

Interface:  RGB

Touchscreen Type: Capacitive touch

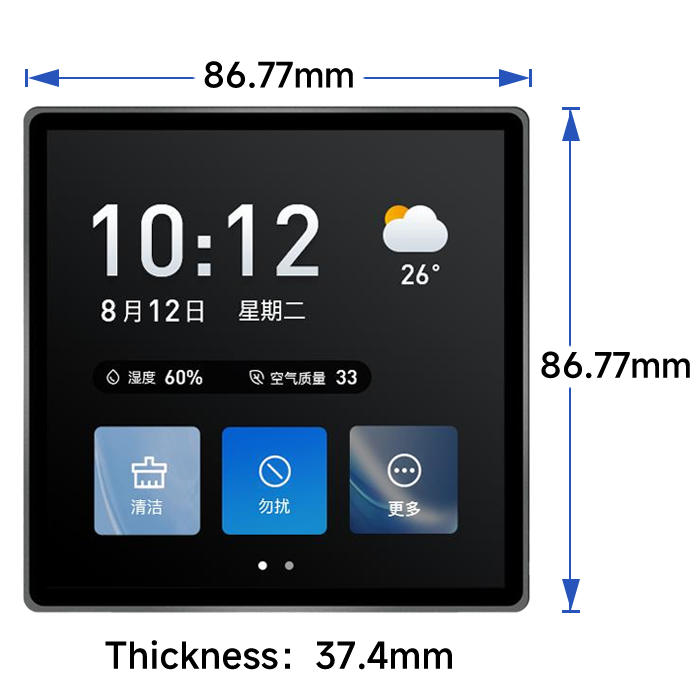

Dimensions: 86 * 86 * 37 mm
