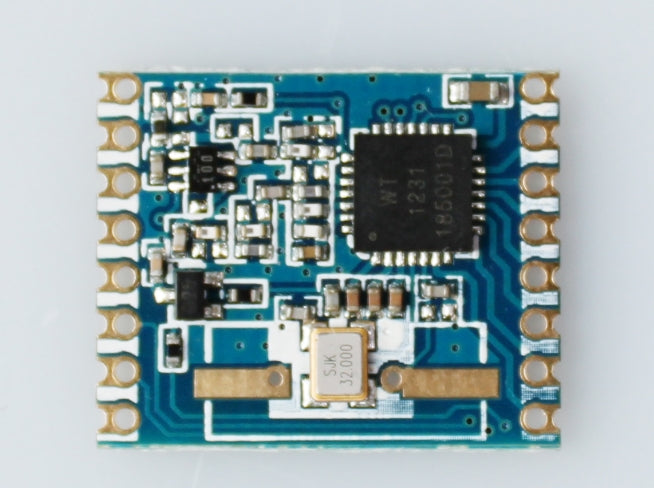

Wireless-tag | WT1231H ISM TRANSCEIVER MODULE V1.3

The WT1231H is a transceiver module capable of operationover a wide frequency range, including the 315,433,868 and 915MHz license-free ISM (Industry Scientific and Medical)
frequency bands. All major RF communication parameters are programmable and most of them can be dynamically set. The WT1231H offers the unique advantage of programmable narrow-band and wide- band communication modes. The WT1231H is optimized for low power consumption while offering high RF output power and channelized operation. Compliance ETSI and FCC regulations.

KEY PRODUCT FEATURES
‹ +20 dBm - 100 mW Power Output Capability
‹ High Sensitivity: down to -120 dBm at 1.2 kbps
‹ High Selectivity: 16-tap FIR Channel Filter
‹ Bullet-proof front end: IIP3 = -18 dBm, IIP2 = +35 dBm,80
dB Blocking Immunity, no Image Frequency response
‹ Low current: Rx = 16 mA, 100nA register retention
‹ Programmable Pout: -18 to +20 dBm in 1dB steps
‹ Constant RF performance over voltage range of module
‹ FSK Bit rates up to 300 kb/s
‹ Fully integrated synthesizer with a resolution of 61 Hz
‹ FSK, GFSK, MSK, GMSK and OOK modulations
‹ Built-in Bit Synchronizer performing Clock Recovery
‹ Incoming Sync Word Recognition
‹ 115 dB+ Dynamic Range RSSI
‹ Automatic RF Sense with ultra-fast AFC
‹ Packet engine with CRC-16, AES-128, 66-byte FIFO
Built-in temperature sensor
‹ Module
