NEW ESP32 P4 & ESP32-C5 SOM BOARD WT01P4C5-S1with Esp32-p4 Esp32 C5 Chip Support 2.4 & 5G Dual-band Wi-Fi6 Zigbee Thread Device

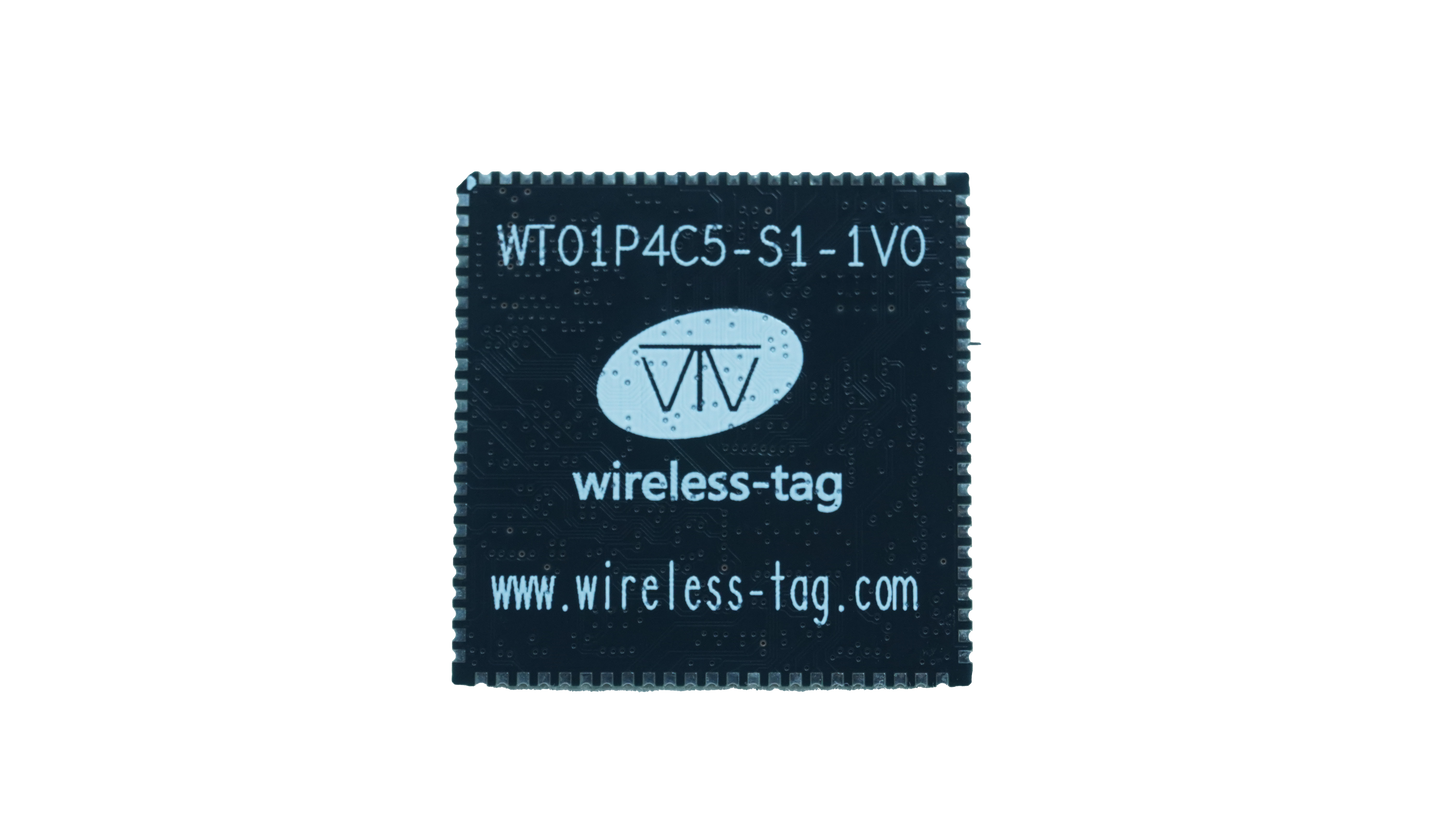

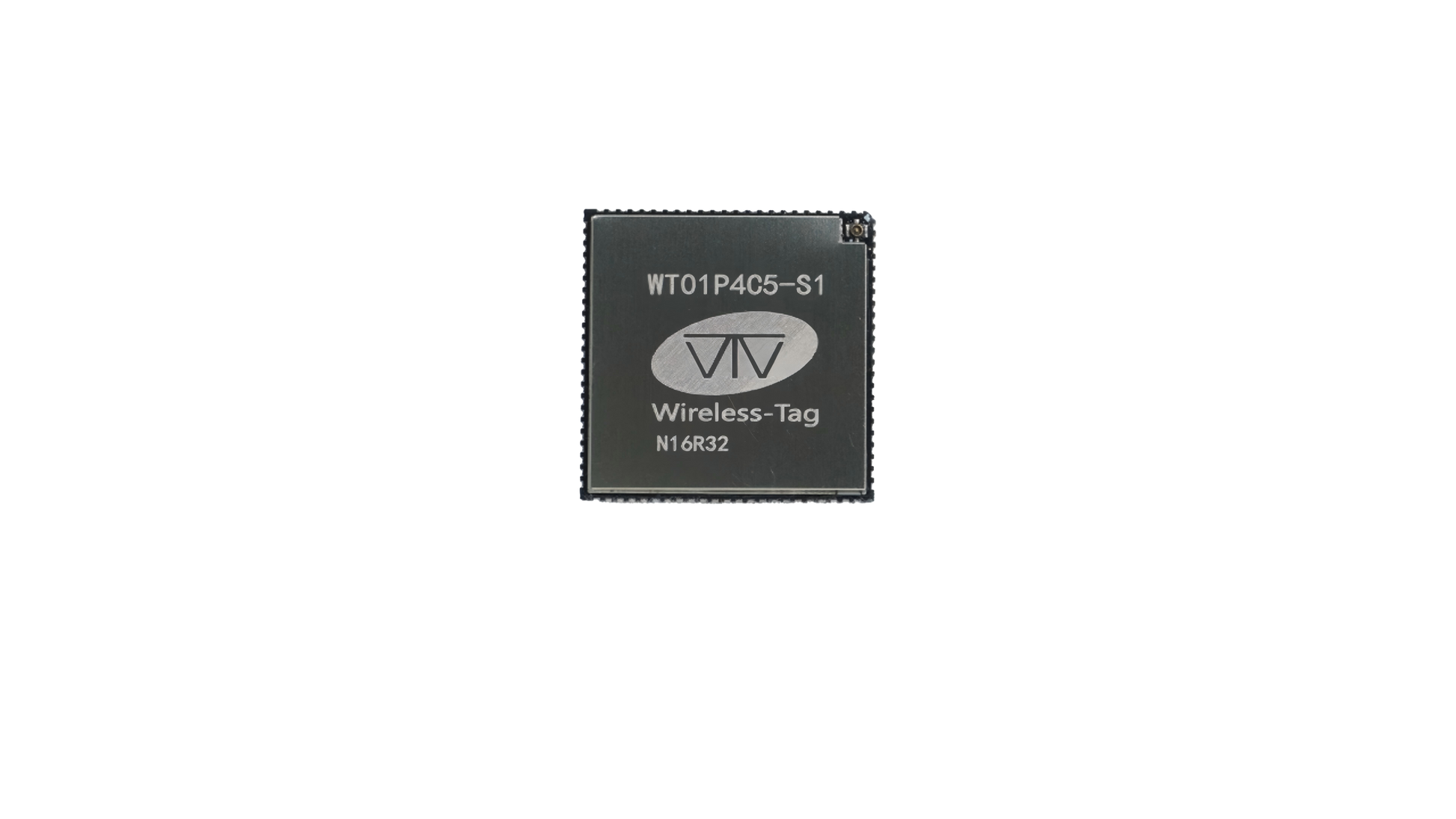

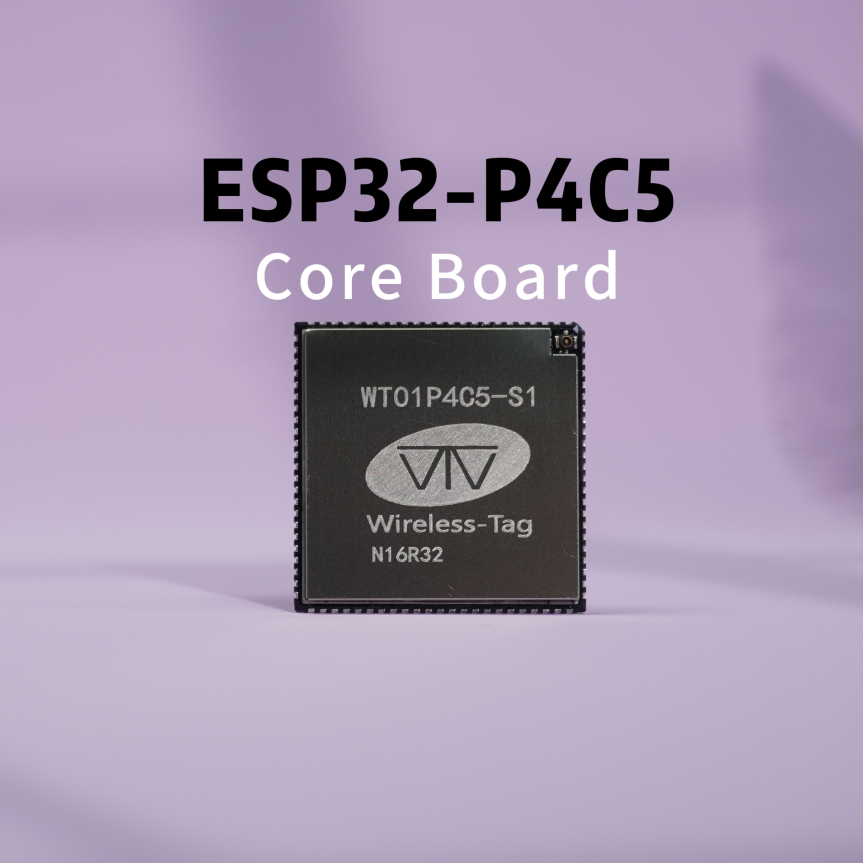

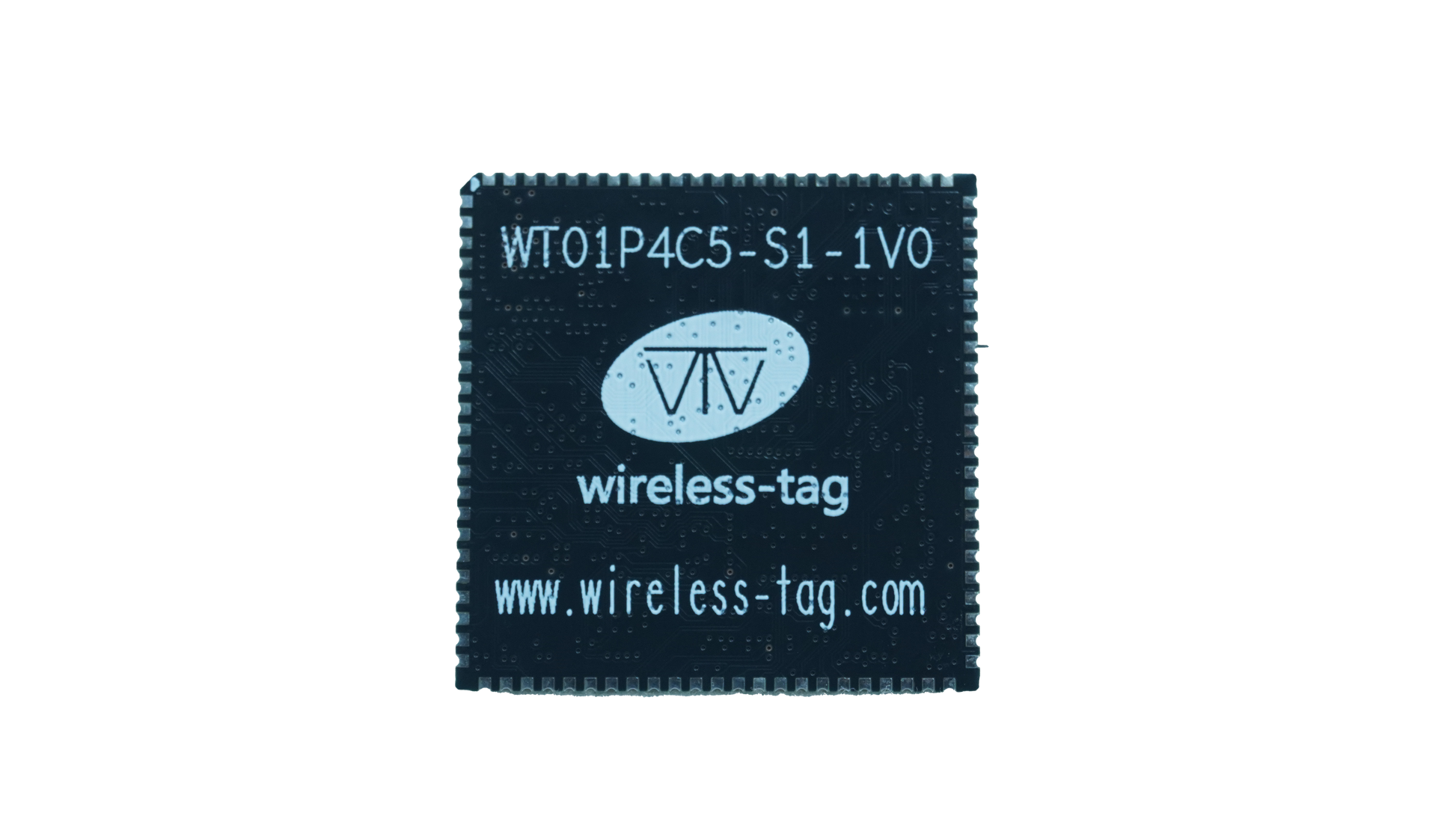

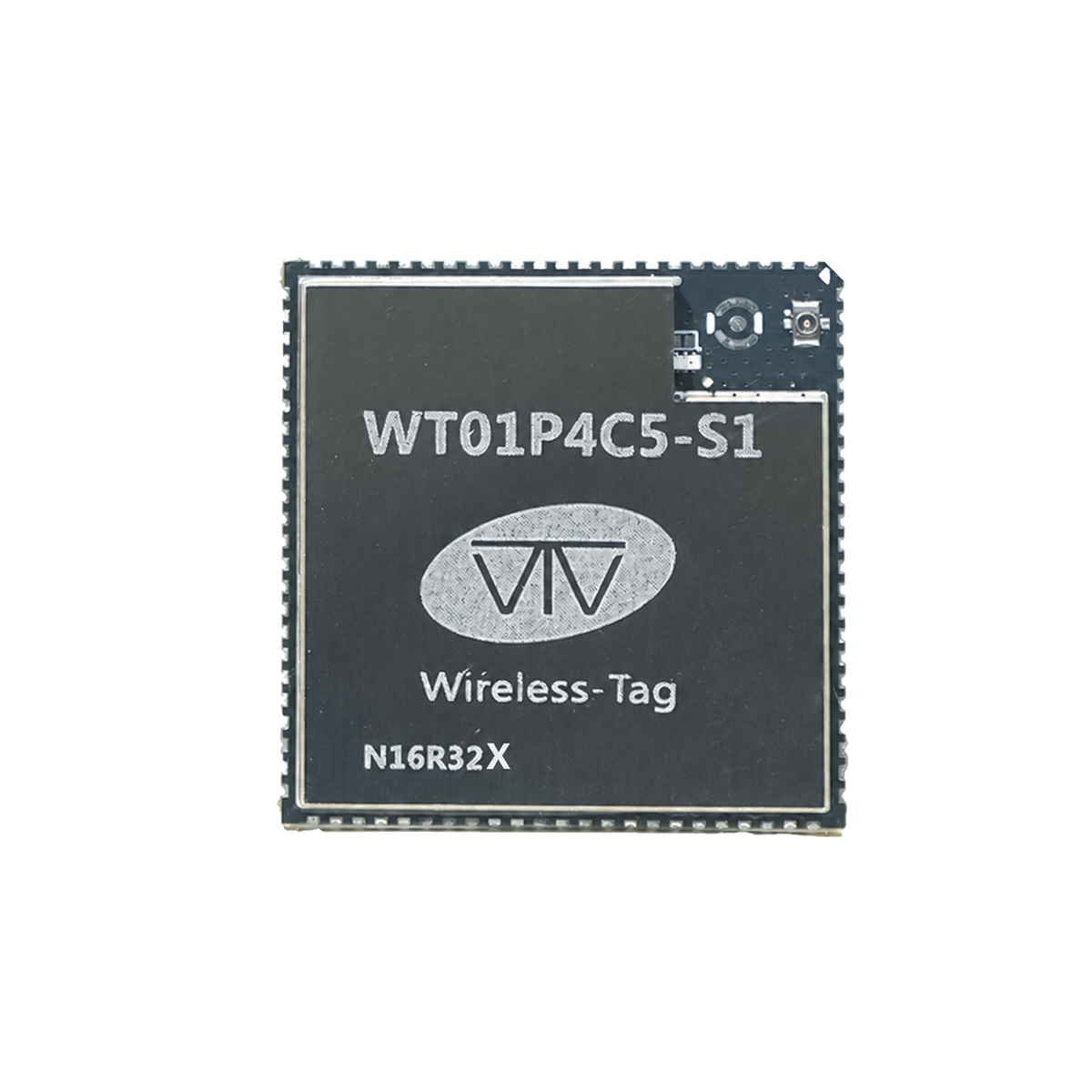

WT01P4C5-S1,a core board with integrated 2.4GHz & 5GHz Wi-Fi6 and NOR FLASH based on Espressif’s ESP32-P4 and ESP32-C5 series chips designed by Wireless-Tag Technology Co.,Limited.The core processor chip, ESP32-P4, is stackable with either 16MB or 32MB PSRAM in a package that includes a high-performance (HP) system and a low-power (LP) system.The HP system is a RISC-V dual-core processor running at 360MHz and includes a
JPEG codec, Pixel-Processing Accelerator, H.264 video encoder, and MIPI interfaces, providing powerful image and voice processing capabilities.
The ESP32-C5 high-performance SOC on the core board supports 2.4 & 5G dual-band Wi-Fi6 (802.11ax), Bluetooth®5 (LE), Zigbee, and Thread (802.15.4). The ESP32-P4 and ESP32-C5 on the core board are connected via their SDIO
interface, and the rest of the pins are already pinned out.

2.Product Features
1）Dual-core 360 MHz high-frequency CPU
2）16 MB Flash and 16/32 MB Psram
3）supports 2.4GHz & 5GHz dual-band Wi-Fi6, BLE5.3, Zigbee, Thread
4）ESP32-P4 adn ESP32-C5 chip with full pinout
5）Supports multiple multimedia interfaces
6）Core board size is small, easy to hardware design
7）Development materials are complete
